Descripciones

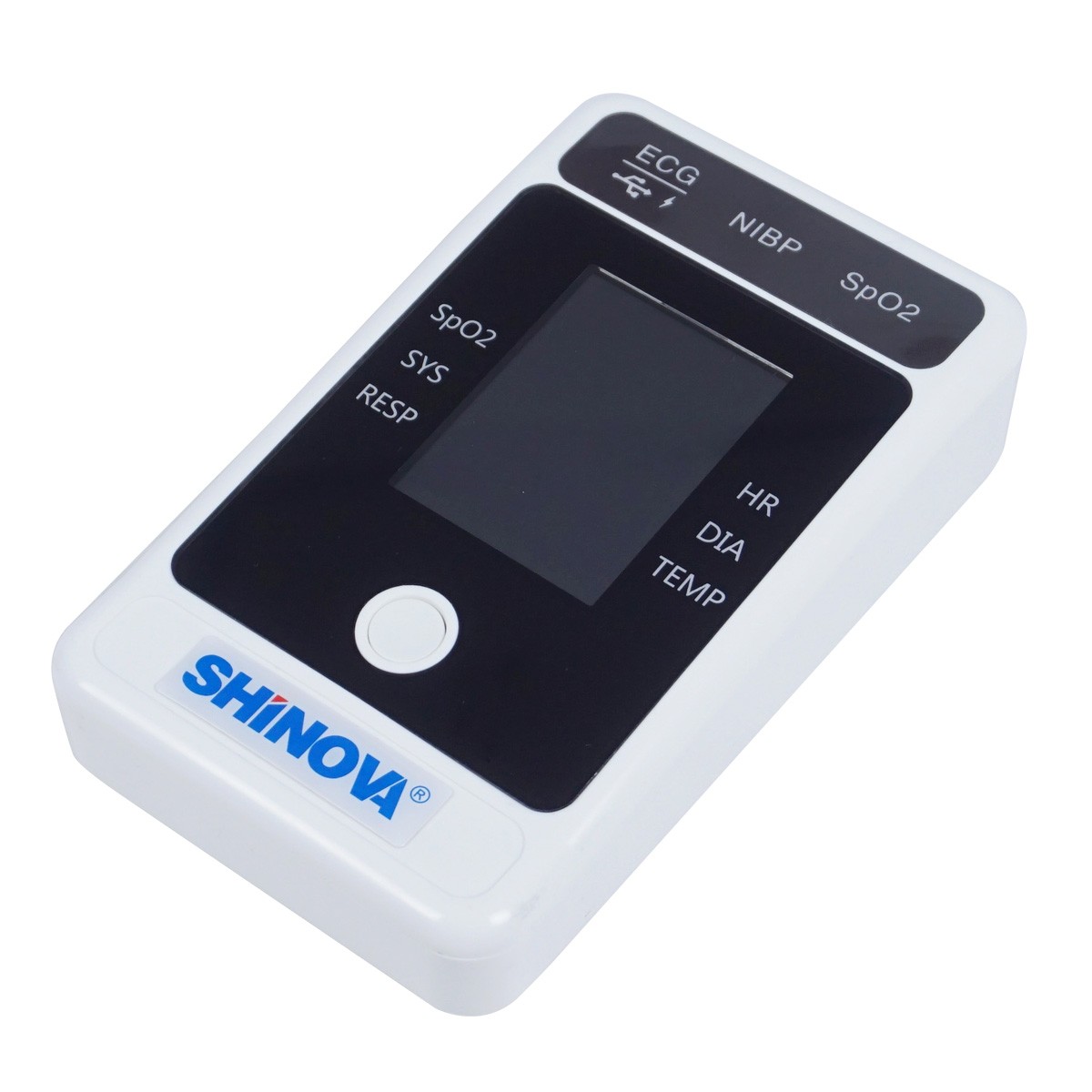

a) This monitor integrates the functions of parameter measurement,waveform monitoring, etc. Its color TFT liquid crystal display is able to show patient parameters and waveform clearly. The monitor also features compact size, lightweight, easy-to-carry handle and built-in battery, which make it portable in clinic, ward, even at home.

b) This monitor is capable of monitoring parameters:  ECG(Eletrocardiograph), HR(heart rate), NIBP(noninvasive blood pressure), Spo2, PR(Pulse rate), TEMP(body temperature).

c) The One-Button-Design make the monitor to be a easy-to-use system,so you can perform the operations conveniently.Besides,this monitor can be connected with the other smart terminals such as PC,iphone and Android phones.

Especificaciones

LCD	2.4 inch
ECG	Waveform:   Lead I Band   width  0.05Hz-100Hz(3dB) diagnose mode 1-40Hz            monitor mode 0.1-25Hz         operation mode
Resp	\
Temp	Type: Vascular/surface temperature Scope: 20℃-50℃ Accuracy: ±0.2℃
NIBP	Detection scope: Systolic blood pressure:   4kPa-34kPa(30-255mmHg) Diastolic pressure:   2kPa-29.3kPa (15-220mmHg) Mean pressure: 2.7kPa-31.3kPa (20-235mmHg） Detection accuracy: Static   pressure: ±4mmHg
SpO2	Detection scope: 35%-100% Accuracy: ±2% 80%-100% ±3% 70%-79%
Heart rate	Scope: 15bpm to 300bpm Accuracy: ±1bpm
AC adapter	Input: AC 100-240V, 200mA Output: DC 5V 1A
Bluetooth	Support both Bluetooth 3.0 and BLE 4.0
Built-in-Battery	3.7V, 1800mAh lithium battery
Service   life	Over 10000 times
Size	145mm*85mm*37mm
Weight	240g
Display	2.4 inch color TFT LCD
Key	Power on and perform functions
