Descripciones

Equipment Figure: new designed body and beautiful outlook. Taking films very expediently dune film turn above.

Equipment frame: narrow frame make the operation easily and break, simply install, easily clear and check and repair.

Install and adjustment: occupy small ground, install very freely, fit full dark room or half dark room.

Film sending frame: for “u” shape continue rolling and no touch guide system design, no risk of the film jamming or scratch and body shadow. Through full developing, fixing and washing, image make very clear and no change for a long time.

Critical parts: the rollers’ material can resist high-temperate and crystallization. No change shape and swell for using long time.

Circuit control: microprocessor controls heating, automatic check and touch films, replenishing chemicals.

Energy-saving: keep sleep situation when no films need processor after a while. Stop heating and rolling, then cut enter water, this can save energy for max limit.

Especificaciones

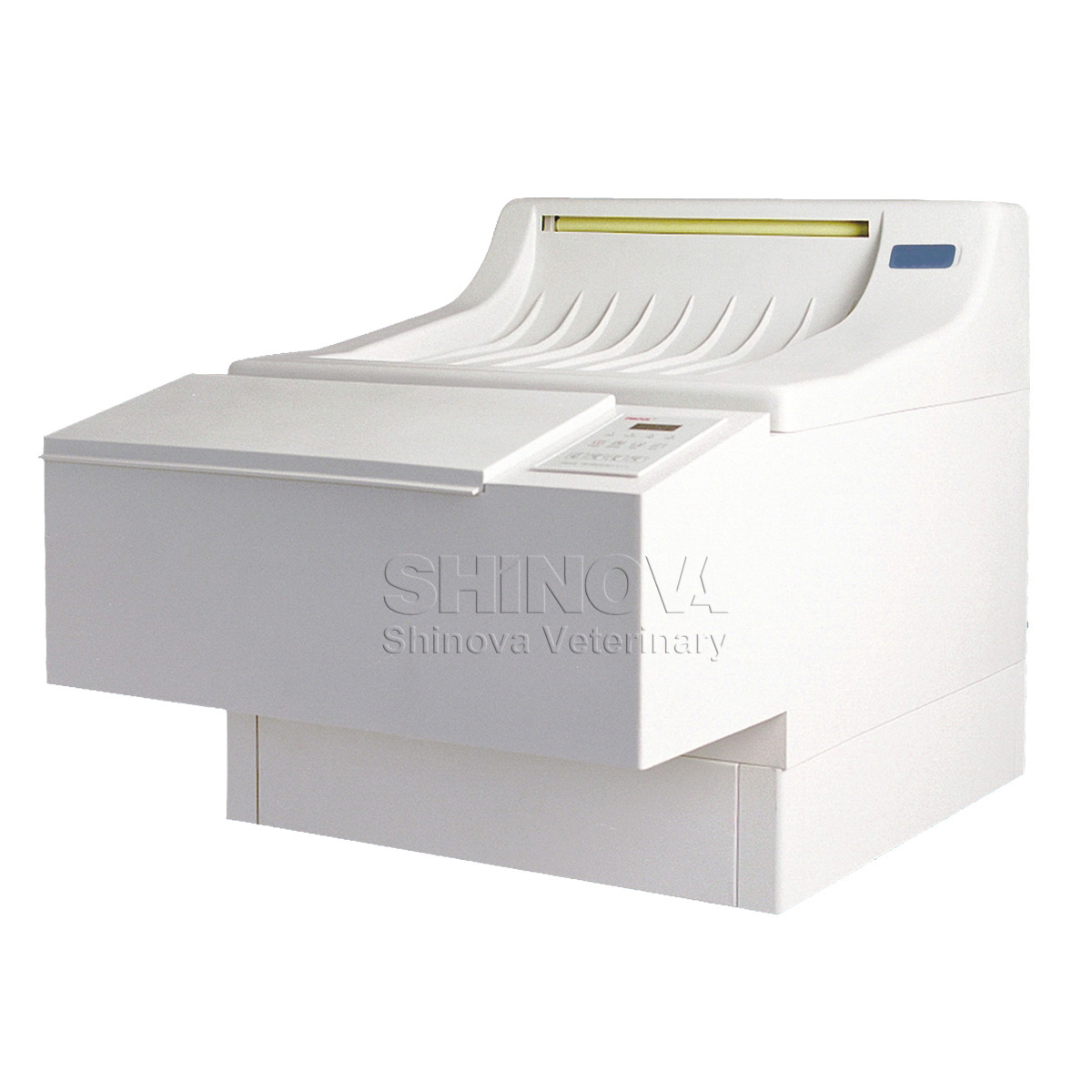

Model	FP-450A
Max washing size (mm)	Max 45×∞(17”×∞)
Min washing size( mm)	10×20(4”×4”)
Film type	Sheet or roll X-RAY,CT,MRI etc.
Processing time	90-300s to be adjustable
90s processing time washing	200sheet/h(14”×17”),280sheet/h(10”×12”)
Developer temp.	20℃-40℃(interval1℃)
Dryer temp.	20℃-70℃(interval 5℃)
sheet induction	Import switch with jiggle
Developer time	25-70s(interval 5 s)
Replenishment system	50-500ml/sq.m. to be adjustable
Anti-oxidation, Anti-crystal	30mins interval
Tank  capacity	Each 12.5liter (developer/fixer /washing)
Wash consumption	Washing ,2liter /minutes
Consume	Washing2500w,not work 230w
Externality size	105×72×123cm.(include rank)
power	220V/50HZ/8.8A
weight	80kilograms(include rank)
