    SHINOVA
    MSU1
    Ultrasonido Bruno/Blanco
    ¡Obtenga el Precio Promocional!
    1 Piezas
    Dentro de 15 días contra pago
    T/T, L/C, Paypal, Cash, Other

Descripciones

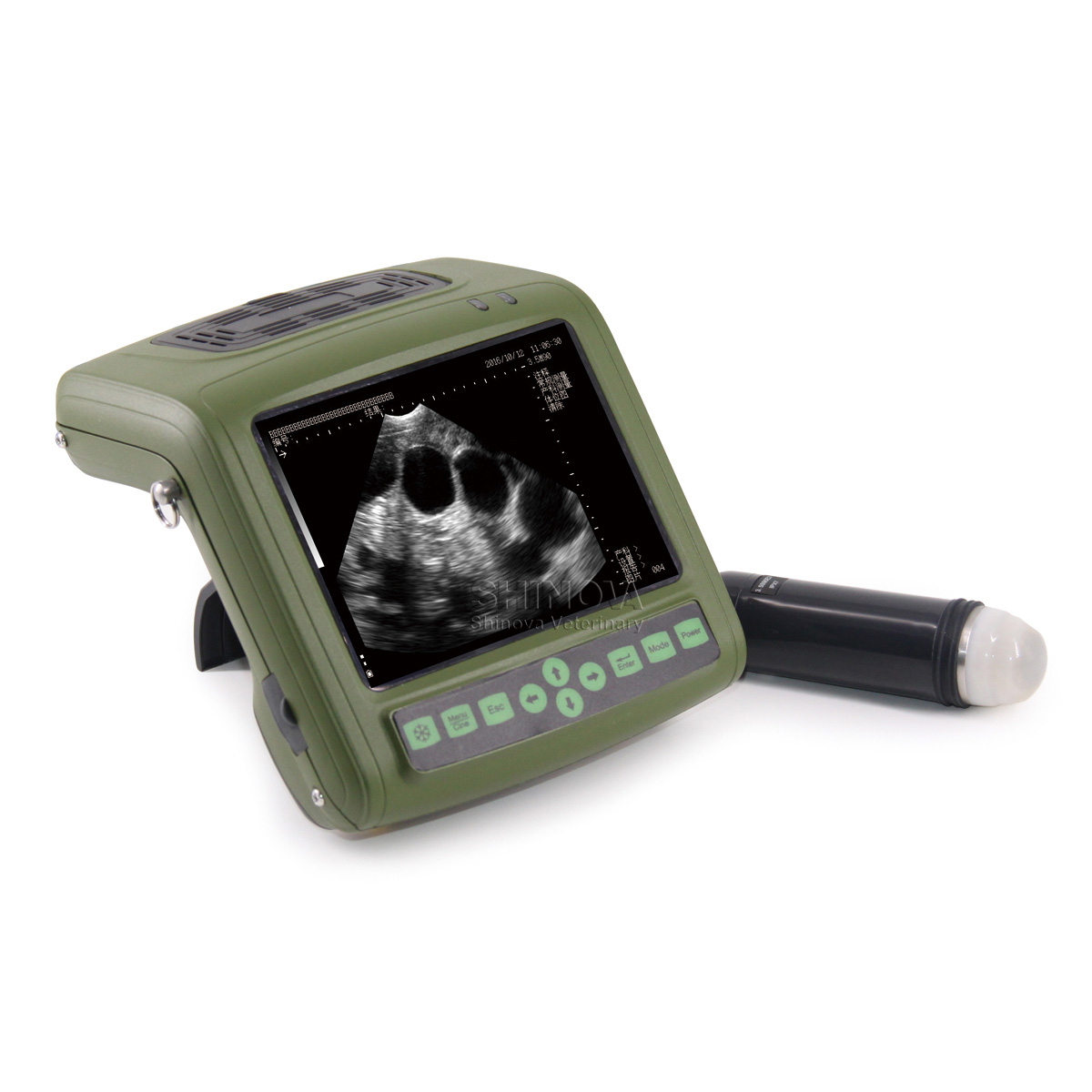

Wrist design, multiple patents in one, smart and light, easy to carry, convenient for examining .
Wrist, hang around neck, desktop, outdoor sunshade, total four kinds of application, which brings the new application experience to users.
5.7" high resolution color LCD, high brightness, high contrast, wide visual, image clear and exquisite.
OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.
5 kinds Magnification, maximum display depth is 200mm.
Display mode:B,2B,4B,B/M,M.
100 frames permanent storage.
Eight pseudo colors (incl.B/W).
High speed USB port support high-capacity U disk.
Dual-mode TV output: PAL/NTSC, connecting to video recorder and video glasses.
Optional mouse to operate easier.
Freeze or unfreeze image by shutter release.
Water-proof, dust-proof, unique window radiator, avoid farmhouse cross infection.
Adopted AC and DC to supply power, equipped with 1pc of high-capacity lithium battery which can make machine work more than 200 minutes.
Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system.


Especificaciones

5.7" High resolution color LCD, high brightness, high contrast, wide visual, suitable for outdoor use.
Body mark: 1) general cardiac 2) bovine  3) canine 4) equine 5) feline 6) Cardiology 7) swine-7 kinds, total 27 body marks with probe position.
Display mode: B,2B,4B,B/M,M, total 5 kinds.
5 kinds of Magnification, maximum display depth is 200mm.
Gain range: 0~127dB
Dynamic range: 27~90dB
Gray: 256
Frame frequency: 30 frames/second
Pseudo-color: 8 kinds (incl. B/W)
Local zoom and local additive color.
Permanent image storage: 100 frames.
Puncture guiding function, (2 guiding lines, angle and position adjustable). General measurement: distance,Perimeter, area (trace method, ellipse method), volume, etc.
Cardiac measurement: depth, slope, heart rate, time.
OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.
OB report function.
Adapter rating: 100-240V, 50-60Hz,1.2A. Output of adapter: DC12.8V 3.0A.
Battery: 1pc of high-capacity lithium Battery(2400mAh) ,more than 200 minutes work.
Net weight: 1.0kg.
Main unit size: 155x180x80mm (length x width x height)


Configuraciones

Standard:
Main unit + one 3.5MHz waterproof mechanical sector probe;
Power adapter, Lithium battery, Leather case, Base Charger, Belt, Bracket, Shutter release.

Optional:
Video glasses, USB flash disk, Mouse, Video printer, Battery, Black suitcase, Color laser printer
