    SHINOVA
    CX112

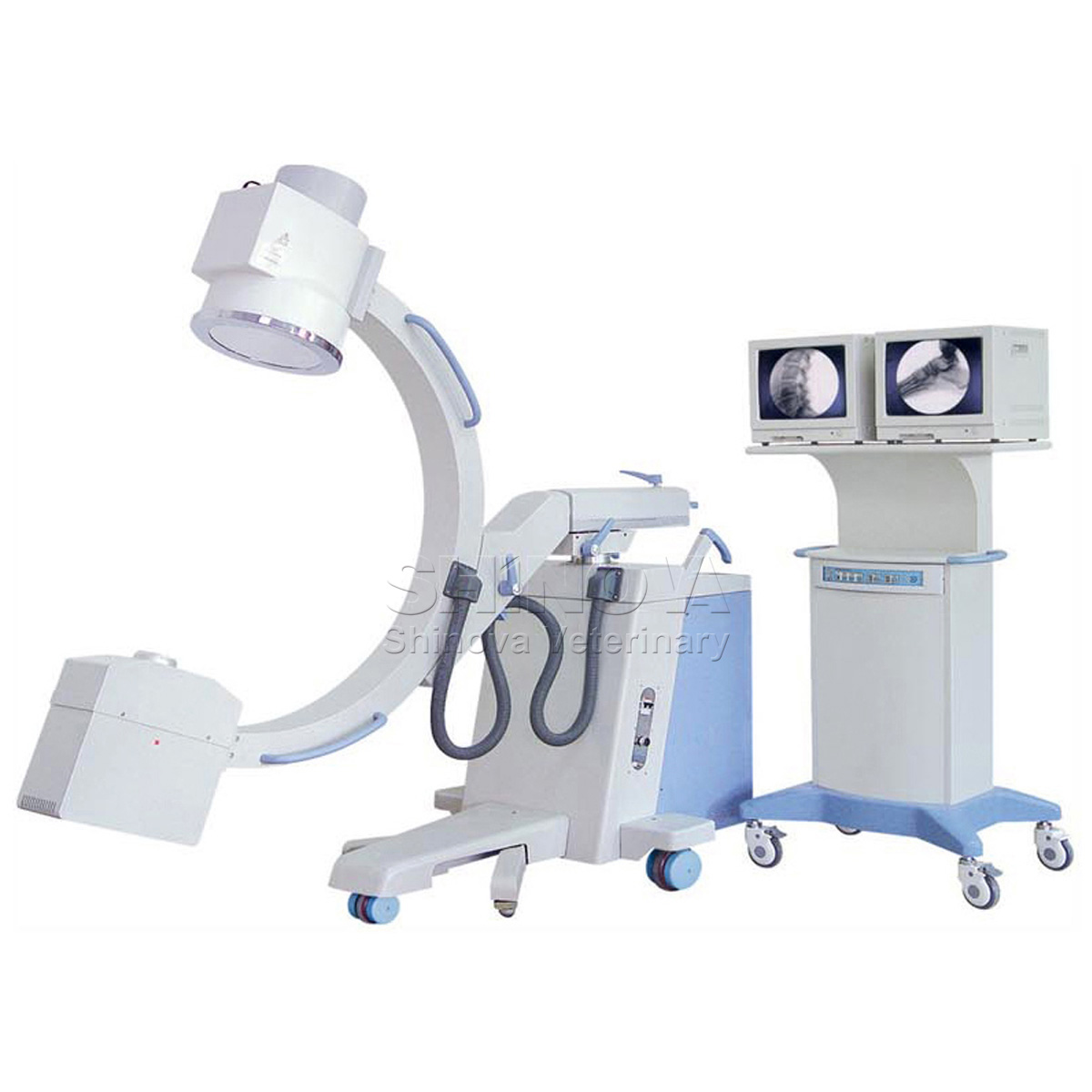

    Máquina de Brazo en C
    ¡Obtenga el Precio Promocional!
    1 Piezas
    Dentro de 15 días contra pago
    T/T, L/C, Paypal, Cash, Other

Descripciones


1. With a small and beautiful appearance, and easy to operate;

2. Clinical Video system with high performance,7 images storage volume, and two 14〞high-resolution monitors;
3. Automatically track fluoroscopy to make the image brightness and clearness optimum;
4. Automatically store the last image of fluoroscopy to advantage diagnosis;
5. With a high-quality knockdown X-ray generator to reduce radiation.

Especificaciones

Fluoroscopic Capacity
   Max rated capacity             : Tube Current 4mA, Tube Voltage 110kV
   Automatic Fluoroscopy     : Tube Voltage:40kV~110kV adjust automatically
   Tube Current                      : 0.3mA~4mA set manually
   Manual Fluoroscopy          : Continuous Tube Voltage:40kV~110kV
   ContinuousTube Current : 0.3mA~4mA
   PulseFluoroscopy             : Continuous Tube Voltage 40kV~110kV
                                                   Continuous Tube Current 4.1mA~8mA

PhotographyCapacity
   Max rated capacity             : 3.5 KW
   Tube Voltage and Current Combination               : 40kV~49kV   1~125 mAs
                                                    50kV~59kV   1~110 mAs
                                                    60kV~69kV   1~90  mAs
                                                    70kV~79kV   1~80  mAs
                                                    80kV~89kV   1~71  mAs
                                                    90kV~99kV   1~63  mAs
                                                    100kV~110kV  1~40  mAs
   Plateholder Size                  : 200mm×250mm(8″×10″) or
                                                    250mm×300mm(10″×12″)

X-ray Tube
   X-ray Tube: Special for High Frequency Fixed anode
   X-ray tube with 2 foci:Large focus: 1.5mm, small focus: 0.6mm
   Inverter Frequency: 40KHz
   Thermal capacity: 30KJ (40HU)

VideoSystem
   Image Intensifier                : Image Intensifier made by TOSHIBA (9″,6″,4.5″)
   CCD Vidicon Monitor         : Horizontal 1000 lines and vertical 800 lines,
                                                   Bandwidth: 12.5MHz,
                                                   Image/sec: 25
   CCU(central control)         : Recursive Filter: K=8, 7 images storage, image upright, image overturn, positive & negative image; LIH(last image freeze, and OSD(monitor display)

Structure
   Direction wheel                  : ±90°revolution, can change the moving direction of the unit.
   Ascending & Descending Range of Pillar             : ≥400mm
   C-arm                                   : Forward and Backward Movement: 200mm
                                                   Revolution around Horizontal Axis:  ±180°
                                                   Revolution around Vertical Axis     :  ±15
                                                    Slip on orbit: 120°(+90°~ -30°)
    Packing Details                 : 2440mm×1220mm×1430mm
                                                    N.W. 300kgs      G.W.400kgs
